Containermobile double toggle jaw crusher

Robust performance guarantee at numerous recycling centers, in gravel pits and quarries.

Crusher CitySkid V3 DT


The CitySkid 7V3 DT is brought to the location where it will be used using the hook lift or on the low-bed trailer. There is almost no set-up time. The 700 x 500 mm large crusher intake also handles chunky charging material without any problems.

The unique "toggle" construction guarantees trouble-free transport of material from the crusher to the stockpile and the best possible accessibility under the crusher. Whether you use the 7V3 DT with hard stone, recycling, or multiple prong crusher jaws: the CitySkid 7V3 DT always guarantees optimal screening product lines.

Performance Data

Feed hopper: 3.500 x 2.000 mm
Vibrating feeder: 3.000 x 650 mm
Jaw crusher: 700 x 500 mm
Discharge conveyor width:
800 mm
Discharge height: 2.800 mm
Drive: electric



  • Top conveyor magnet
  • Side conveyor
  • Light barrier controller
  • Toggle loading device


Working length: 9.176 mm
Working width: 2.240 mm
Working height 3.650 mm
Transport length: 7.568 mm
Transport width: 2.240 mm
Transport height: 2.689 mm (3-axis hook lift:)
3.030 mm (low-bed trailer)
Weight base machine: 13,500 kg
Weight allowance, magnet: 700 kg
Weight allowance, side conveyor: 550 kg


"I only use my double toggle jaw crusher to crush hard stone and abrasive material. Nobody has wear costs which are as low as mine."

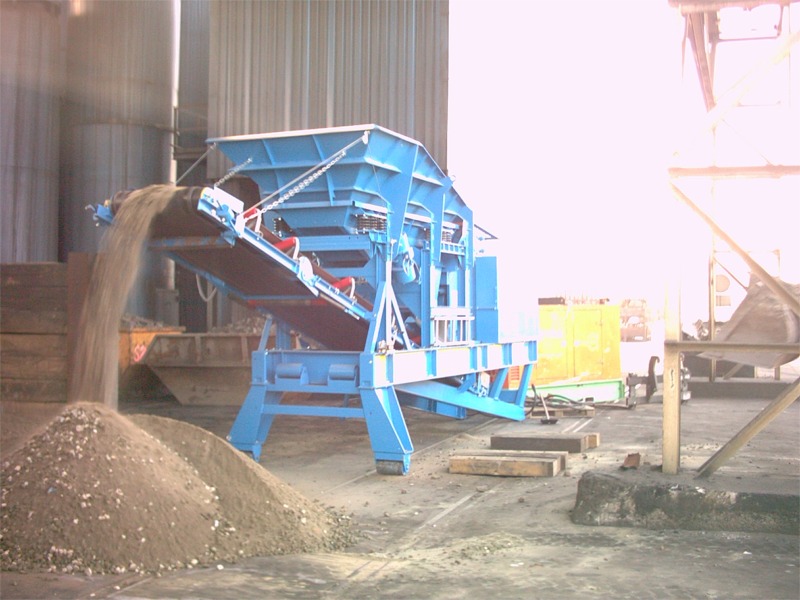

Picture Gallery
