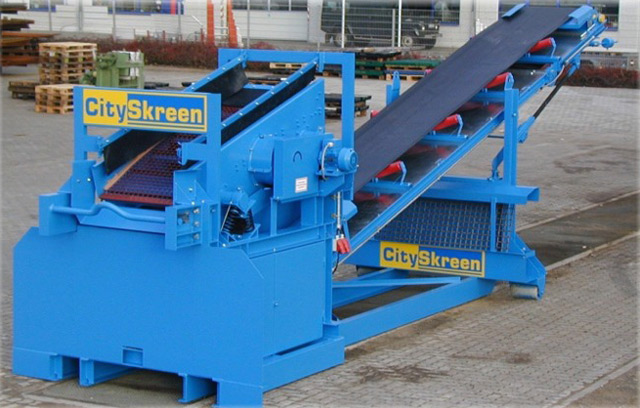

The simple, thorough design of the plant makes the CitySkreen 920 an indispensable helper when you want to use an economical screening plant downstream from your existing crushing or screening technology. We purposely did away with an intake hopper, motor, and unnecessary conveyer belts. Only the large mass flow, the fine fraction, is dumped on the stockpile to the maximum height. The oversize particles are generally trimmed off using a wheel loader or discharged off to the side using an on-board stockpile conveyor. The CitySkreen 920 is brought to the location where it will be used via a hook lift or low-bed trailer. Equipping times are almost nothing. Whether you use the CitySkreen 920-1 with a simple oversize particle discharge or the CitySkreen 920-2 with the integrated oversized particle conveyor: minimal operating costs and maximum utilization ensure that numerous CitySkreen owners stay competitive.
| Charging height: | 2,450 mm |
| Two-deck screening box: | 2,000 x 900 mm |
| Discharge conveyor (fine material): |
800 mm wide |
| Discharge height: | 2,940 mm |
| Electric drive: | screen, removal and optional oversize particle conveyor; 3.0 kW each |
| CitySkreen 920-1 | |
| Working length: | 8.900 mm |
| Working width: | 2.240 mm |
| Working height: | 2.940 mm |
| Transport length: | 7.600 mm |
| Transport width: | 2.240 mm |
| Transport height: | 3-axis hook lift: 2,450 mm Low-bed trailer: 2,940 mm |
| Weight: | 4.200 kg |
| CitySkreen 920-2 | |
| Working length: | 8.900 mm |
| Working width: | 2.240 mm |
| Working height: | 2.940 mm |
| Transport length: | 8.900 mm |
| Transport width: | 2.350 mm |
| Transport height: | 3-axis hook lift: 2,450 mm Low-bed trailer: 2,940 mm |
| Weight: | 4.700 kg |
"With the CitySkreen 920, I save space and wear and only have to make a small investment. This means that I win three times."
